Daisy Seed · ESP32-S3 · ESP32-C3

Patch it.
Hear it. Flash it.

A visual patcher where the patch is the firmware. Drop DSP nodes on a canvas and hear them now; lay the knobs, jacks and OLED out on your board; press Build. What plays at your desk is what the device plays — every node is checked for that.

Download Read the guide Source

Linux · Windows · macOS. Free, AGPL-3.0. Work in progress — every rough edge you report gets looked at.

The loop

Five steps, one window, no exporting.

Nothing here needs a second tool. The compilers are the only thing not in the box, and the app installs the libraries and tells you exactly which compiler is missing and how to get it.

Patch

95 node kinds — oscillators to granulators, sequencers to state machines, an OLED with an in-node display designer, a Code node for the rest.

Listen

Every node has a WebAudio twin. Press Space, turn a knob, hear it. Scope, VU and spectrum draw live inside the node.

Wire

Your board, drawn to scale. Drop a pot on a pin; a knob node appears in the patch, already bound. Delete either; both go.

Build

libDaisy/DaisySP for the Seed, PlatformIO for the ESP32s. Live build log, generated code view with per-node provenance.

Flash

DFU or serial, from the same button. Serial monitor for what comes back. Presets and samples ride along in the firmware.

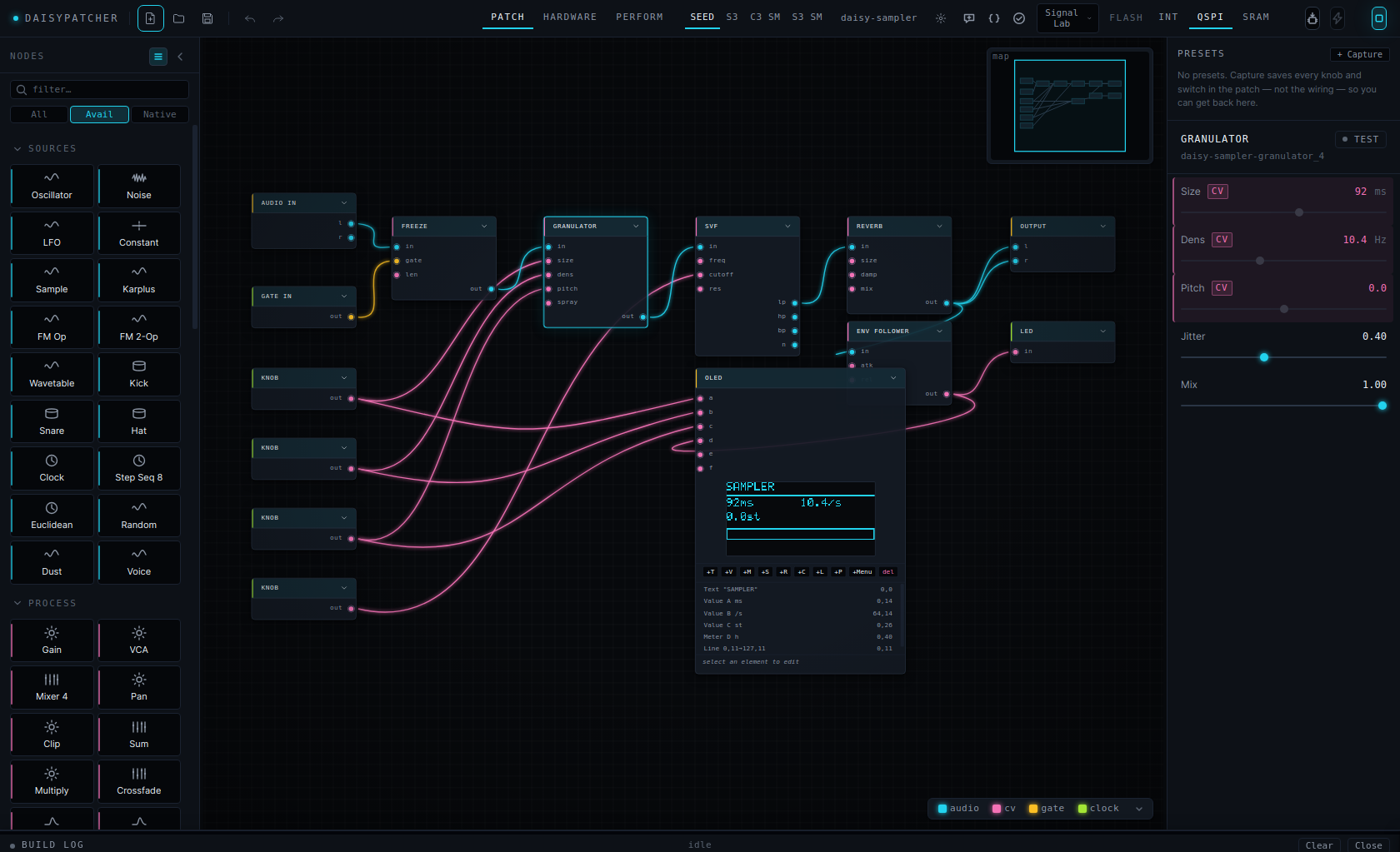

The Patch view: the sampler example — audio in, freeze, granulator, filter, reverb; four knobs and an OLED node with its live display; cables colour-coded by signal kind — Patch — the sampler example, playing.

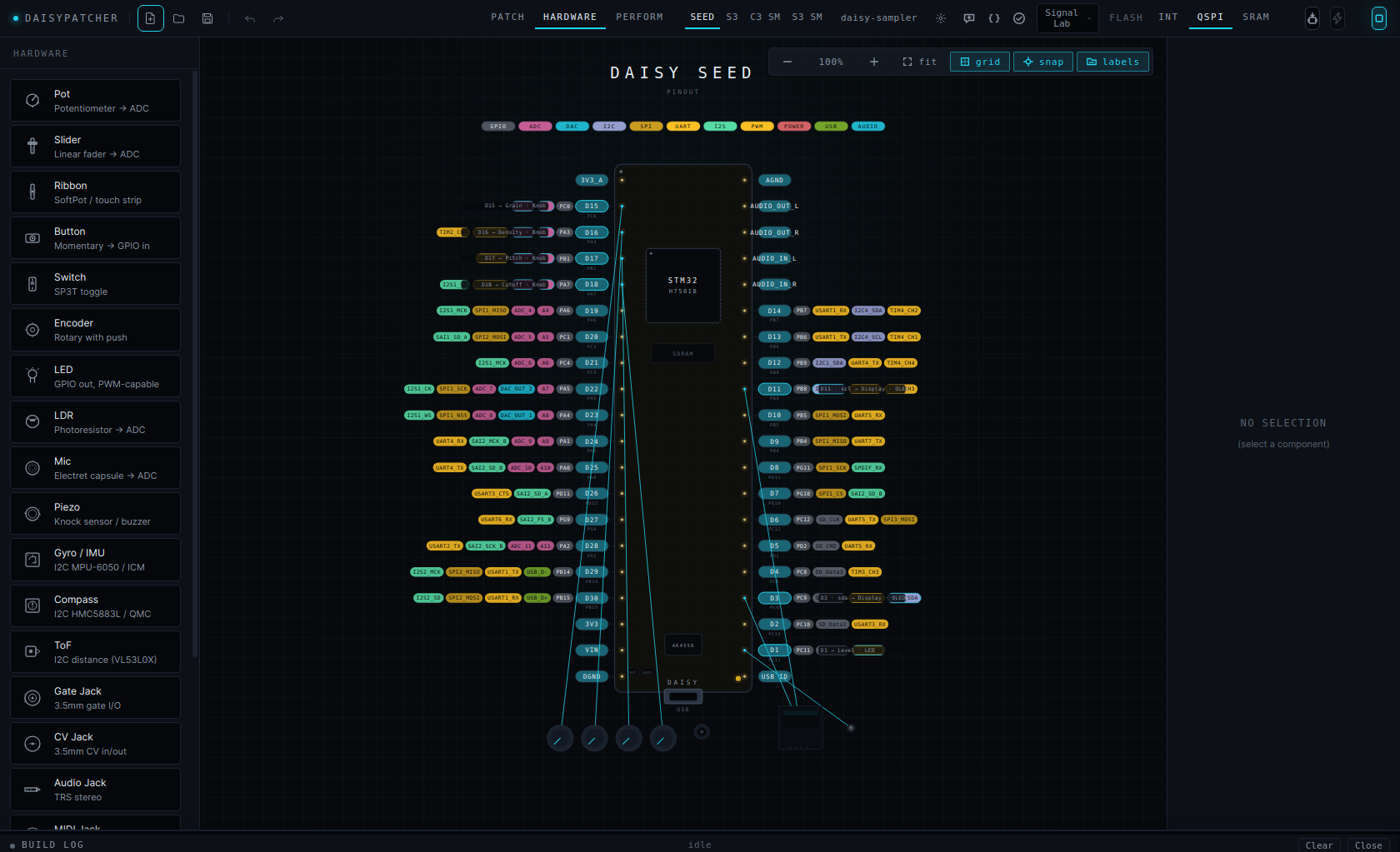

The Hardware view: a Daisy Seed drawn to scale with pots, an OLED and jacks bound to pins — Hardware — the board, the pins, the parts.

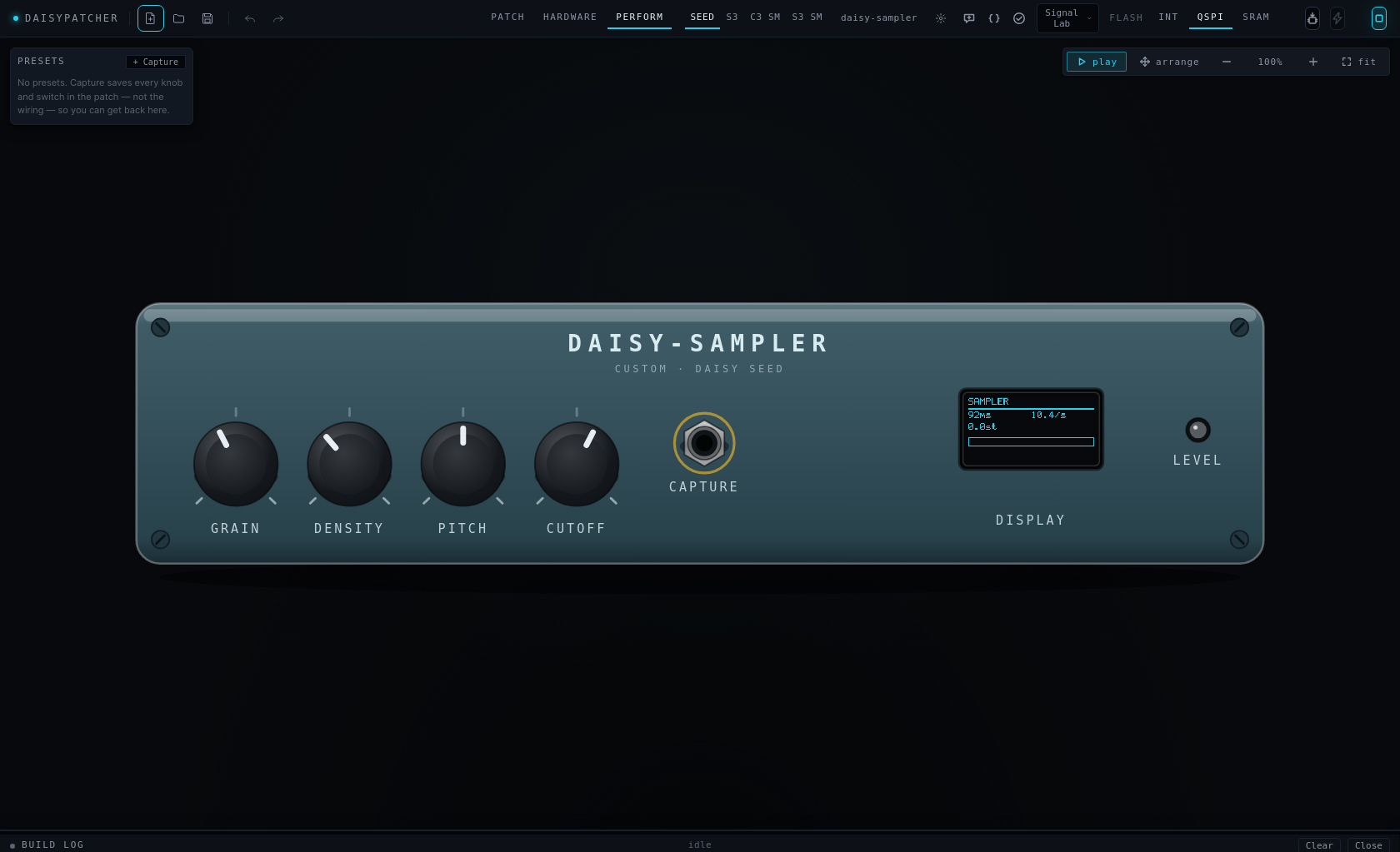

The Perform view: the finished enclosure with knobs, LEDs and an OLED, playable — Perform — the box you would hold.

Parity

The preview is the thing you are previewing.

An emulator that sounds different from the device is worse than no emulator: you tune against it and then blame the oscillator. So the two halves are compared, not assumed.

In the app

One worklet per node

Faithful ports of the DaisySP modules — including the parts where a setter quietly rescales its argument. Sixteen divergences were found and fixed this way; several were audible bugs on hardware (a phaser that clipped, a tone knob that did nothing once flashed).

On the device

One emitter per node, per board

The same patch is compiled with the real toolchain, run on the host against a stubbed board, and its waveform is compared with the emulator's — level and shape, every gate input driven, reset and clock both. Structural nodes (subpatch, poly) are flattened before either side sees them, so nesting is bit-identical to the flat patch.

test:codegen

Every example × every board, generated C++ diffed against a checked-in copy.

test:contract

A kind that claims a board must have a real emitter there; every declared output produced at block scope; boards agree.

test:features

Does the feature work: voices expand, presets reach the firmware, samples land in flash, save→load is a fixed point, the assistant refuses bad edits.

test:compile

Per-node make / pio run for all four boards.

test:audio

The one that listens.

Boards

One graph, four boards.

The palette greys out what the selected board cannot run, and says why. Switching board keeps your components and flags any pin that does not exist on the new one.

Board	Audio	Native kinds	Notes
Daisy Seed	onboard codec	94 / 95	The reference target. First run clones and builds libDaisy + DaisySP.
ESP32-S3 DevKitC	I²S DAC — PCM5102A, MAX98357A	91 / 95	`granulator` runs with a shorter buffer without PSRAM; `expression` and the I²S pass-through kinds are stubs.
ESP32-S3 SuperMini	I²S DAC	92 / 95	The ESP32-S3-Zero layout: 2 × 9 header pins plus castellated/back pads. Its 2 MB PSRAM is declared, so the granulator runs at full length here.
ESP32-C3 SuperMini	I²S DAC	88 / 95	As above, minus USB-MIDI: RISC-V has no TinyUSB device stack.

Download

Beta builds, straight off CI.

Unsigned everywhere for now — the OS will ask once. Linux is the most travelled. Compilers are not bundled; the app tells you what it needs, per board, and where to get it.

Linux

AppImage, x64 and arm64. chmod +x, run.

Seed flashing needs a udev rule — it is in the guide and in the flash log when it fails.

AppImage

Windows

NSIS installer or portable exe, x64.

SmartScreen: More info → Run anyway. The Daisy Toolchain installer brings gcc, make and dfu-util.

Installer

macOS

dmg, Intel and Apple Silicon.

Unsigned: right-click → Open the first time. Auto-update is off on macOS until builds are signed.

DMG

Or run from source: git clone https://github.com/willbearfruits/daisypatcher && cd daisypatcher && npm install && npm run dev — Node 22+.

Your data

Nothing phones home.

No telemetry. The app talks to the network for three things only: the one-time SDK clone from GitHub, the update check against GitHub Releases (Linux and Windows), and — if you use it — the assistant.

The assistant is opt-in and off until you open it. When you send it a request, the current patch (node kinds, parameters, connections — not your samples, not your files) and your message go to the provider you picked. Ollama, the default, is local: nothing leaves your machine. Anthropic or OpenAI means their API over HTTPS; your key lives in the app's config folder, readable only by your user, and never enters the window.

Patches are files you own. .dpatch is plain JSON.
